KTM | SKU: 56530081000 | Check Compatibility

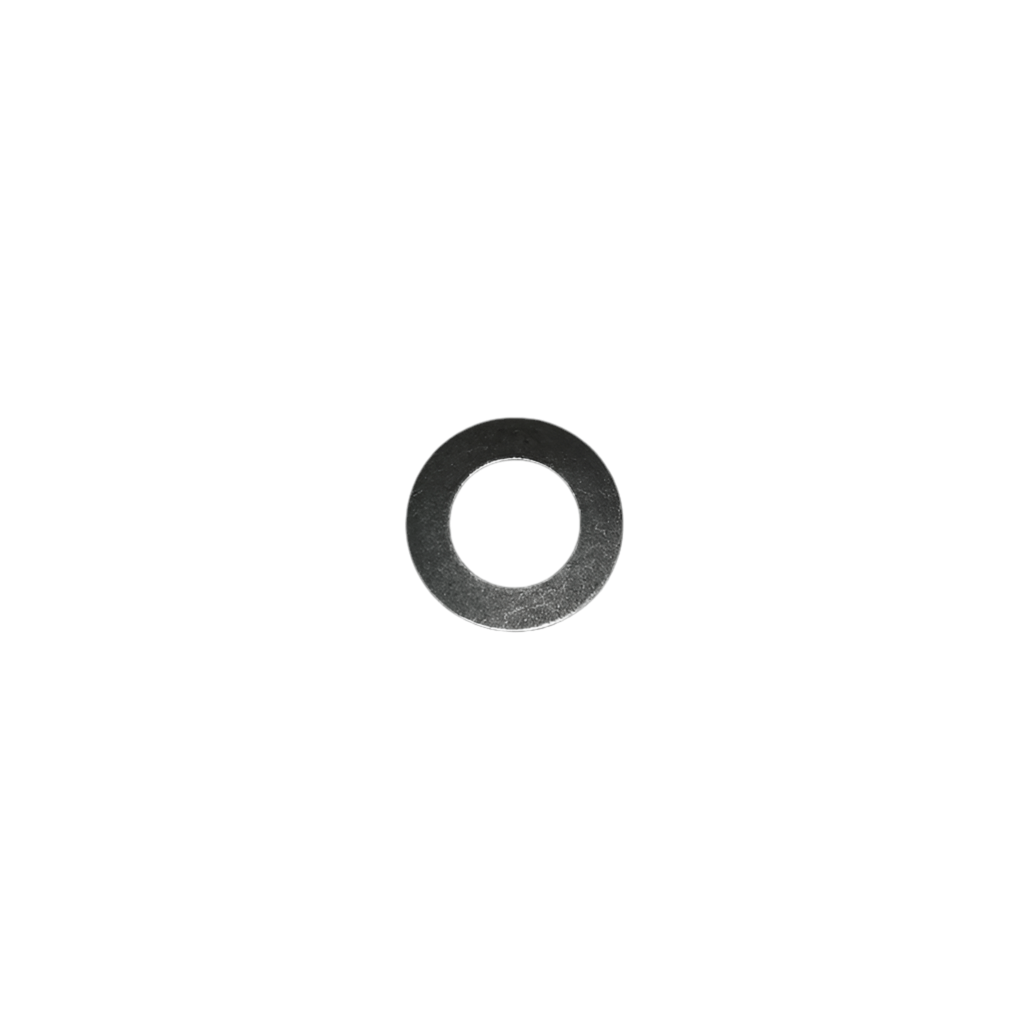

OEM Crankshaft Shim Washer 36x48x0.10 for KTM 450/500/690 1996-2026 - 56530081000
Shipping and Availability
Shipping and Availability
We maintain up-to-date stock. If labeled 'In stock Fast Shipping' expect shipment to be sent within 1 working day.
Shipping from Europe typically takes 3-5 working days anywhere in the world.
Note that non-EU countries may have customs duties and added taxes in accordance with local laws.
Description
Description
This genuine OEM shim washer (36x48x0.10mm) is a critical component for the crankshaft assembly of your engine. It is designed to provide precise spacing and maintain correct tolerances within the crankcase, ensuring smooth rotation and reducing internal wear. As an authentic factory part, it meets the exact material specifications required for high-performance motorcycle engines.
This shim fits an extensive range of models, including the KTM 450 and 500 EXC-F, SX-F, and XC-F (2016-2026), as well as the KTM 690 Enduro R and SMC R (2008-2026). It is also compatible with Husqvarna 701 Enduro/Supermoto, FC/FE 450/501 models, and GasGas 450/500/700 series. Furthermore, it supports legacy LC4 engines such as the KTM 620, 625, 640, and 660 models from 1996 onwards.
Manufactured from high-grade hardened steel, this shim is built to withstand the extreme heat and mechanical pressure found in the bottom end of the engine. Its precise 0.10mm thickness allows mechanics to fine-tune crankshaft end play, which is essential for preventing lateral movement that can lead to bearing failure.
When performing a bottom-end rebuild or replacing crankshaft bearings, always refer to your service manual to verify the required shim thickness. Using genuine OEM hardware ensures that your engine remains reliable and performs at its peak under all riding conditions.
Check compatibility list below to see if this part fits your motorcycle model.
